제품 사양

Condition: New

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 2 years

Core Components: 1

Material: wood, SS316/SS304

Weight: more than 100 kg

Size: more than 0.5*0.5*1 m

Power: 1.5 KW

Warranty: 1 Year

Productivity: 500L/Hour

Product name: RO1 rotary drum screen cleaner

Certifation: CE ISO9001

Width: 600 mm

Channel Width: 620 mm

Installation Angle: 35 Degreen

Discharge Height: 1000-1500 mm

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

기본 정보

결제 및 배송 조건

Packaging Details: Export standard package or customer reqiurment

Supply Ability: 15 Set/Sets per Month

제품 설명

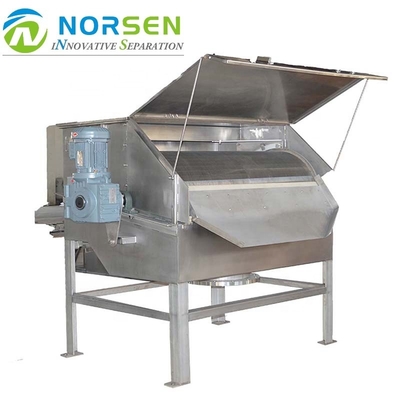

RDS-type rotary drum sceen is a device that can continuously and effectively screen out solid suspended solids in water. Mainly used in sewage pretreatment or industrial sieving process. In some sewage treatments, the sieved sewage can remove 30% to 60% of organic or inorganic suspended solids, greatly reducing the processing load of subsequent processes. The equipment is widely used in the filtration of fine solids in food, wine, pharmaceutical, dairy products and other industries.

This machine is composed of drum, driving mechanism, unloading mechanism, recoil pipeline, sealing assembly, inspection door assembly, tank body, slag hopper, etc.

Working process: Sewage (or other raw water) flows into the drum from the front of the drum surface through the drum surface, and flows out from the lower part.

The suspended matter in the sewage stays on the rotating drum surface. With the rotation of the drum surface, the trapped dirt is sent from the water inlet end to the discharge end on the other side, and it is scooped down by the discharge mechanism.

1) The equipment price is low, but it can greatly reduce the treatment load of the wastewater system;

2) Stable and reliable work, low maintenance cost;

3) The wedge-shaped drum surface is especially suitable for the passage of fluid, and it is not easy to block;

4) The whole machine is made of high-quality stainless steel, which will never corrode;

5) It can automatically and continuously run and automatically discharge slag;

6) Drum-shaped design, large filtration area, so when the same processing
capacity, compact structure, small footprint and low energy consumption;

7) Fully enclosed design to prevent possible secondary pollution.

NORSEN

NORSEN, is a worldwide leading company in wastewater & solid-liquid separation of industrial & municipal wastewater. Our head office and factories are located in the city of Wuxi, Jiangsu province, while we’ve got branches all over the country as well as agents and distributors all over the world. Our featured products are Wastewater Treatment & Sludge Dewatering Machine, which can be widely used in varieties of industries, such as papermaking, printing & dyeing, food & beverage, oil & gas, coal mining, pharmacy, livestock, light industries and so on. NORSEN are constantly focusing on the innovating.
