Name: SS304 Fish Farm Drum Filter For RAS Recirculating Aquaculture System
Brand: SS304 Fish Farm Drum Filter For RAS Recirculating Aquaculture System
SKU: HXGLXS1205D
Price: 1 USD
Availability: InStock
Rating: 4.5 (120 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: HXGLXS1205D

Material: SS304

Screen mesh: 43/60/90 (Î¼m)

Drum size: Dia.1192mm*1987mm

Reducer motor: 0.75kw

Backwash pump: 3kw

Size: 2816mm*1448mm*1450mm

Color: Silver

기본 정보

Model Number: HXGLXS1205D

결제 및 배송 조건

Packaging Details: export packing

제품 설명

Products Description

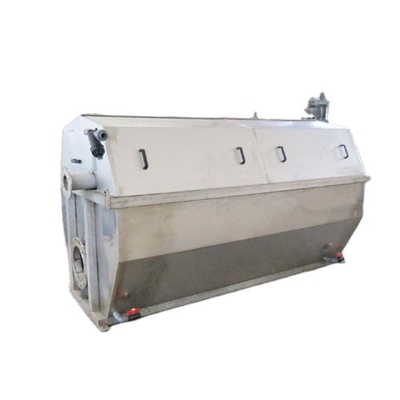

1. Description
Drum filters with stainless steel tank series has been development independently with proprietary intellectual property by DHTED.The main part of this machine is made of 304 or 316L Stainless steel and it is suitable for freshwater or seawater.The drum filters with tank are mechanical filters with max. filter particles filter openings more than the filter cloth.(for fish excreta, feeds residue and organic detritus). It can be used in aquaculture industry RAS, culture plant drainage and industrial sewage treatment.

2. Drum Filter charactors:
1).Flow rate is around 150l/s at 90 micron max.25mg/l SS.
2).Made of SS316L, it is unsensitive to the corrosion
3).0.75kw motor drive
4).Drum operate at 7.7rpm
5).A rising system optimized so as to make water saving
6).A machine with a simple design and robust construction
7).Free maintenance solution

Details Images

Related Products

250 tons per hour fish farm drum filter, drum filter for the recirculating aquaculture system,drum filter for koi pond

Sea water Fish Protein Skimmer for RAS aquaculture recirculating system

High Quality Manufacturer FRP Oxygen Cone For Fish Farm

Chlorella, micro algae,algae culture, algae culture system for indoor cultivation

Fish Farm UV Sterilizer for recirculating aquaculture system

High quality aquaculture fish farming system RAS water treatment 100t/hour rotary drum filter

Our Company

Dalian Huixin Titanium Equipment Dev. Co., Ltd founded in 1993, is a leading industrial aquaculture facility manufacture in China.It is also the enterprise of engineering technique research center in Liaoning area. Our company had been certificated withISO9001-2008, named as National High-Tech Enterprise. It is also the member of Chinese Society for Ocean Enterprise Science, ChinaSociety of fisheries, Chinese Society of Agricultural Engineering. It had been honored with “Abiding by Contract and Being Trustworthy”, “Environment Protection and Resources Saving Growing Private Enterprise in Dalian”, “Top 10 Technological Enterprise in Dalian”, “Excellent Invention” etc.

35 patents, including 16 invention patents.
