Filtration pressure 1-2.5Mpa round plate filter press,clay slurry dehydrration press filter for sale
Round plate of high prssure filter press Introduction:
Zhengzhou TOPER 800 round plate filter press is a kind product used for solids-liquid suspension. It is perfect for sewage treatment performance in stone wasterwater, ceramic, kaolin, building materials and other industries. Due to the propulsion of market requirements, Chinese stone industry achieves a double-digit annual growth rate. It will still maintain rapid growth over the next few years. Based on our advanced industry experience, Toper offer you the best global service.
Round plate of high prssure filter press Highlight Feature:
Our sewage treatment equipment gives ultra strong resistance to high pressure, and the maximum pressure can reach2.5MPa. In response to the heavy demand in stone industry, this machine allows the maximum output of filter cakes to reach up to 18tons each time. It is available in different models to meet the requirements of customers for practical operation. It's all because it's high quality filter plate as follow:
This round plate filter press is broadly applicable for the dewatering of various concentrates and tailings such as the rare earth, bauxite, argil, petuntse, kaolin, bentonite, red mud, diatomaceous earth, activated clay, and more
Working Principle Diagram of the round plate filter press:
Diameter of the round plate filter press:
| Model |
Filter area (m2) |
plate size(mm) |
Cake thickness (mm) |
Number plate (pcs) |
Filter chamber volume(L) |
Pressure (Mpa) |
Maximum displacement | Rated pressure | Dimensions L x W x H(mm) |
Weight (kg) |
||
| lenth | width | height | ||||||||||
| XAM20/φ800-25 | 20 | 800 | 25 | 20 | 255 | 1.0-2.0 | 500 | 22 | 3300 | 1100 | 1060 | 3346 |
| XAM30/φ800-25 | 30 | 30 | 377 | 3780 | 3590 | |||||||
| XAM40/φ800-25 | 40 | 40 | 499 | 4300 | 4554 | |||||||
| XAM50/φ800-25 | 50 | 50 | 621 | 600 | 4820 | 5150 | ||||||
| XAM60/φ800-25 | 60 | 60 | 753 | 5340 | 9710 | |||||||
| XAM70/φ800-25 | 70 | 70 | 875 | 5860 | 5760 | |||||||
| XAM80/φ800-30 | 80 | 30 | 80 | 1200 | 6860 | |||||||

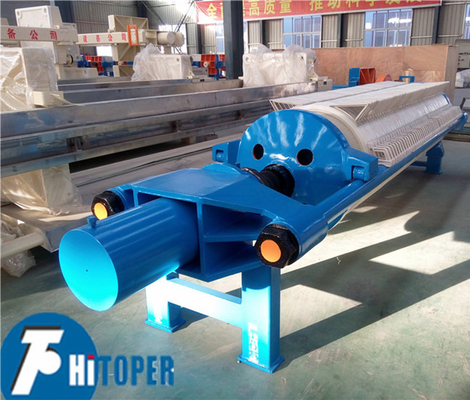

Some more pictures of the round plate filter press Toper exported :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guid for installation, debugging and trainding the workers if required
