Biodiesel Production Separator Machine
Biodiesel oil is green reborn energy, which achieved by the reaction between alcohol (methanol, ethanol ) and fat crop like soy and rapeseed, fat forest fruit like oil palm and yellow wood, fat water vegetable like algae, and also animal fat, wasted edible oil. Bio-diesel oil is used as fuel, being excellent replacement for petroleum diesel oil. Bio-diesel oil is typical "green energy". Which good for the economy continuously developing, and has important strategic meaning at improving energy replacement, reducing environment pressure, controlling the atmospheric pollution.

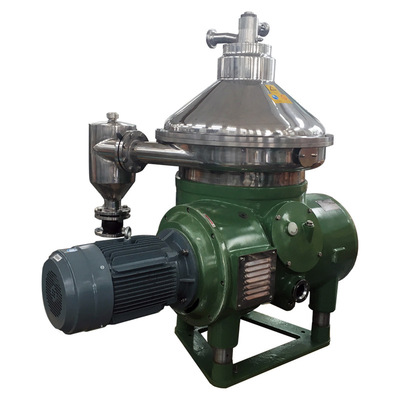

PBDSD Series Bio-diesel oil disk separator is : automatic discharging type which special for bio-diesel oil. It has the traits of high rotation speed, stable operation, complete. Sealing at inlet and outlet system, low noise, excellent separation effect, and etc. Its centripetal pump is designed by ourselves which as the traits of stable output pressure, large regulation range, easy to operate and etc. Also this separator is specially designed automatic control cabinet with safety protection device, and fitted with advanced automatic vibration.
Detector that can inspect the vibrating number of separator and time. Operator can adjust the parameters of separator on the display screen directly, which makes the separation and discharging reach to the best effect. This machine is widely used in degumming, de-soap, water washing, glycerin separation of bio-diesel oil.
PBDSD series disc separator mainly used in the Methanol and Glycerine separation in the period of the interesterification.
Centrifuges can be used in the following process stages in virtually all of the following:
1.Separation of methyl ester and glycerine/catalyst/sap/methanol
2.Washing of methyl ester
3.Separation of fatty acids from glycerine 4.Separation of salts from glycerine
| Model | Input pressure(Mpa) | Output pressure(Mpa) | Motor power(KW) | Weight(kg) | Dimension(LXWXH)(mm) |
| DHSY204 | 0.05 | 0.1-0.25 | 4 | 408 | 810X850X1350 |
| DHSY360 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500X1150X1500 |
| DHSY470 | 0.05 | 0.1-0.3 | 15 | 1880 | 100X1200X1800 |
| DHSY550 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850X1550X2050 |
| Model | Capacity(T/D) |
| PBDSD25 | 60-150 |
| PBDSD52 | 120-240 |
| PBDSD75 | 120-300 |
| PBDSD125 | 200-420 |
